Description

Name:Quartz fluorescent cuvette

Volume:3.5ml

Path length:10mm

Technology:Solder frit bolding Material:UV quartz glass

Thermostability:600℃

Wavelength:200nm-2500nm

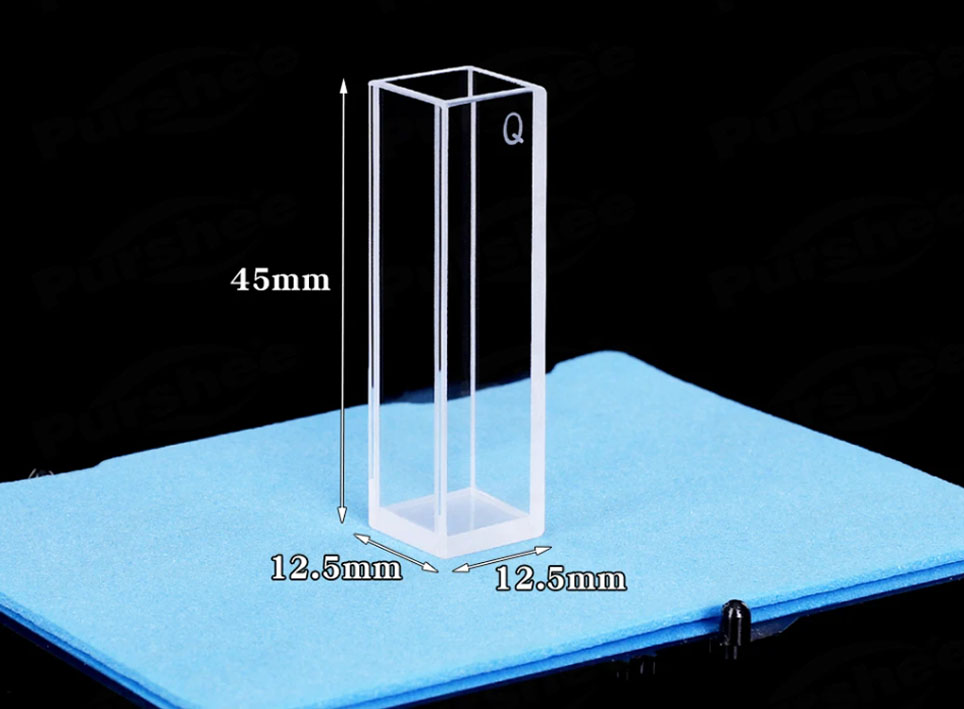

Outline dimension:12.5×12.5x45mm



MATERIAL INTRODUCTION

Three types of quartz glass with different transmittance.

• 1、Ultraviolet quartz glass (■JGS1)， transmittance range 185nm-2500nm.

• 2、Visible light quartz glass (■JGS2)，transmittance range 300nm-800nm .

• 3、Infrared light quartz glass (■JGS3)，transmittance range 300nm-3500nm.

This product is made of(JGS1)with excellent UV and visible light transmittance,which can be used in various specs of UV visible spectrophotometer.

ATTENTION To The Use Of Cuvette

Cuvette, generally rectangular,

is made of frosted glass at the bottom and on two sides

(except fluorescence cuvette that light can penetrate four sides)

while the other two sides are light.
