10mmqutarz cuvette

Standard UV quartz glass cuvette(cells) for spectrophotometer 0.1 to 100mm - Image 2

Standard UV quartz glass cuvette(cells) for spectrophotometer 0.1 to 100mm - Image 3

100mm quartz cuvette

Standard UV quartz glass cuvette(cells) for spectrophotometer 0.1 to 100mm

$52.00 – $260.00

UV quartz glass cuvette(cells) for spectrophotometer .Path length:0.1|0.2|0.5|1|2|3|5|10|20|30|40|50|100mm.

Path Length

Category: For Absorption Measurements

Description

Name:Standard quartz cuvette

Volume:35-35000μl

Path length:0.1mm-100mm

Technology:Frit sintering technology

Material:quartz glass

temperatures：600°C

Wavelength:200nm-2500nm

Outline dimension:2.6-102.5×42.5x45mm

OPTICAL PATH
LENGTH
mm

OUTSIDE DIM
H×W×D
mm

INSIDE WIDTH
mm

BASE THICKN
mm

VOL
μl

ARTICLE NO.

0.1	12.5×2.6×45	10	1.25	35	Q-0012-40
0.2	12.5×2.7×45	10	1.25	70	Q-0022-40
0.5	12.5×3×45	10	1.25	100	Q-0025-40
1	12.5×3.5×45	10	1.25	350	Q-012-40
2	12.5×4.5×45	10	1.25	700	Q-022-40
3	12.5×5.5×45	10	1.25	1000	Q-012-40
5	12.5×7.5×45	10	1.25	1750	Q-052-40
10	12.5×12.5×45	10	1.25	3500	Q-102-40
20	12.5×22.5×45	10	1.25	7000	Q-02-40
30	12.5×32.5×45	10	1.25	10000	Q-302-40
40	12.5×42.5×45	10	1.25	14000	Q-402-40
50	12.5×52.5×45	10	1.25	17500	Q-502-40
100	12.5×102.5×45	10	1.25	35000	Q-1002-40

qutarz cuvette 0.1mm — Quartz cuvette with an optical path of 0.1mm

Quartz cuvette 0.2mm — Quartz cuvette with an optical path of 0.2mm

0.5mm quartz cuvette — Quartz cuvette with an optical path of 0.5mm

1mm quartz cuvette — Quartz cuvette with an optical path of 1mm

2mm quartz cuvette — Quartz cuvette with an optical path of 2mm

3mm quartz cuvette — Quartz cuvette with an optical path of 3mm

5mm quartz cuvette — Quartz cuvette with an optical path of 5mm

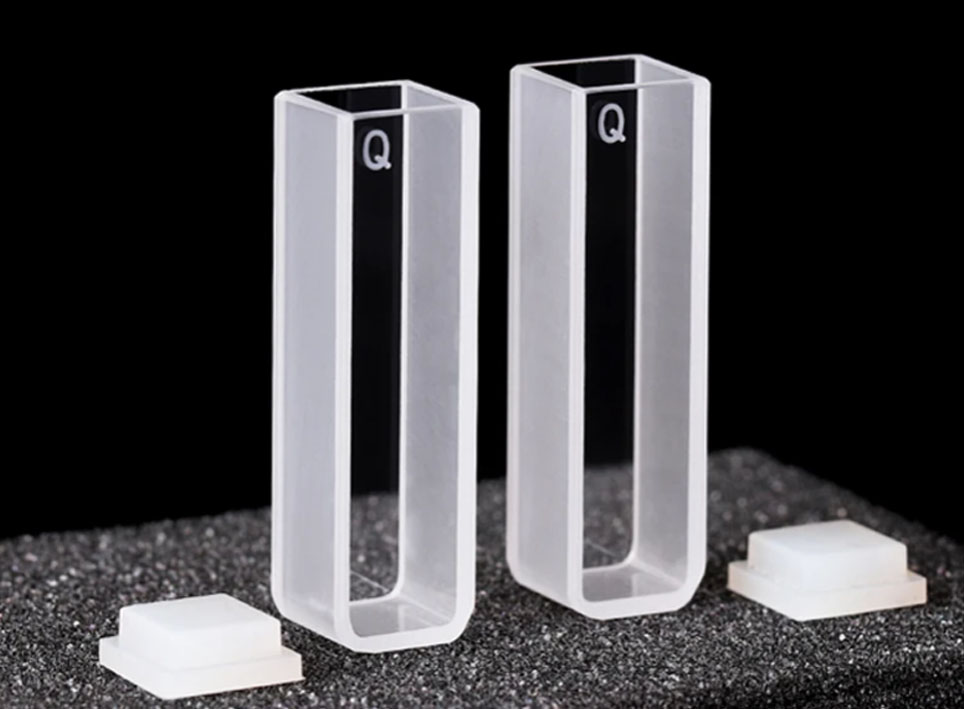

10mm quartz cuvette — Quartz cuvette with an optical path of 10mm

20mm quartz cuvette — Quartz cuvette with an optical path of 20mm

30mm quartz cuvette — Quartz cuvette with an optical path of 30mm

40mm quartz cuvette — Quartz cuvette with an optical path of 40mm

50mm quartz cuvette — Quartz cuvette with an optical path of 50mm

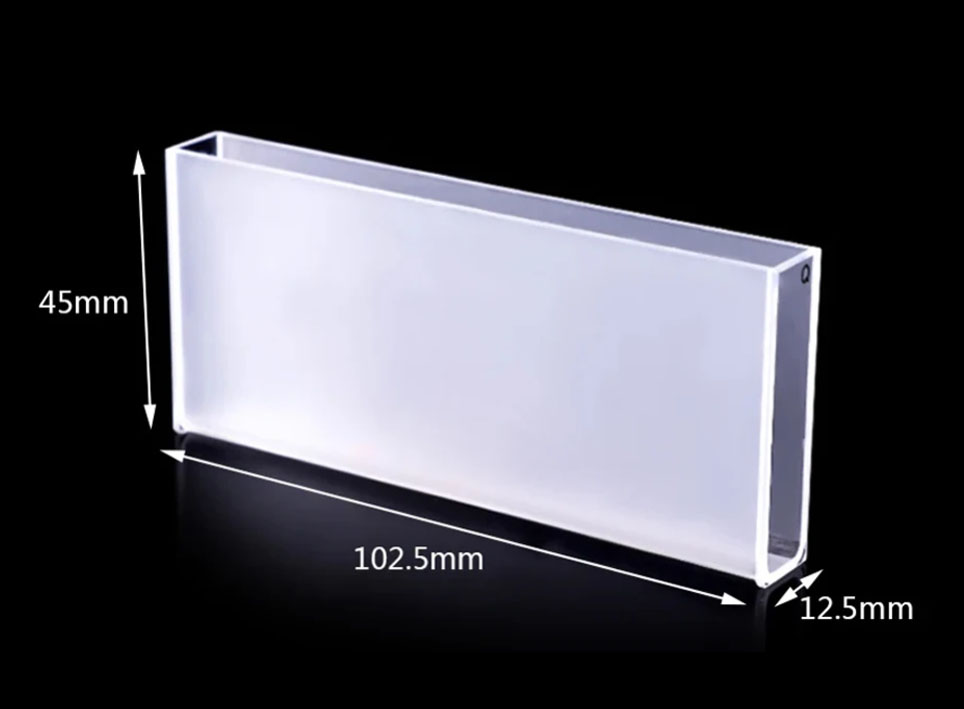

100mm quartz cuvette — Quartz cuvette with an optical path of 100mm

MATERIAL INTRODUCTION

Three types of quartz glass with different transmittance.

1、Ultraviolet quartz glass (■JGS1)， transmittance range 185nm-2500nm.

2、Visible light quartz glass (■JGS2)，transmittance range 300nm-800nm .

3、Infrared light quartz glass (■JGS3)，transmittance range 300nm-3500nm.

This product is made of(■JGS1)with excellent UV and visible light transmittance,which can be used in various specs of UV visible spectrophotometer.

Additional information

Dimensions	N/A
Path Length	0.1mm, 0.2mm, 0.5mm, 1mm, 2mm, 3mm, 5mm, 10mm, 20mm, 30mm, 40mm, 50mm, 100mm
